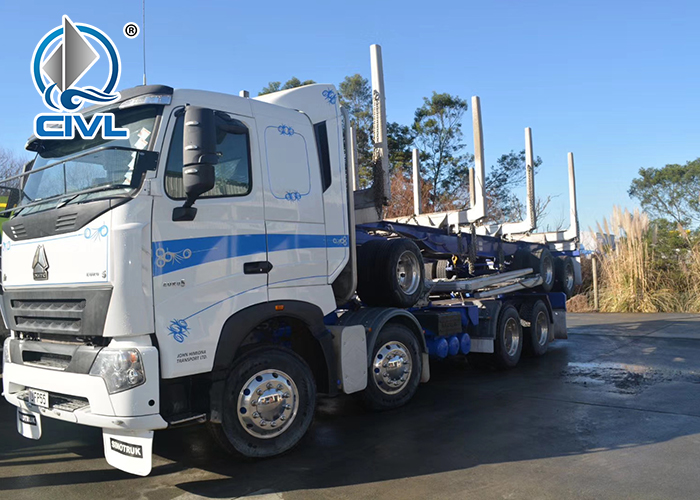

Sinotruk HOWO 6 * 4 Φορτηγό μεταφοράς ξύλου

DESCRIPTION Of Howo Chassis

Truck Model

ZZ4257S3241W

Truck Brand

SINOTRUK-HOWO

Driving Position

Lift hand Driving

Fuel tanker capacity(L)

400

The Total Mass

25,000kg

Curb Weight

9180

Max speed(km/h)(km/h)

90

Color

Optional

Dimension(Lx W xH)(unloaded)(mm)

6800x2496x3568

Overhang(front/rear) (mm)

1500/725

Wheel base (mm)

3225+1350

Engine Model

WD615.47

Hourse Power

371hp

Emission

EURO II

Kind of Fuel

Diesel

Fuel Consumption(L/100km)

30L-50L/100km

Front Axle Model

HF7 axle. Capacity: 7000kg

Rear Axle

ST16 axle. Capacity:2X 16000kg

Ratio of rear axle

3.93

ABS

With

Battery

2X12V/165Ah

SEMI TRAILER SPECIFICATION

Dimension(Lx W xH)(mm)

2800x2496x2800(without draw bar)

Side stake:1000mm

Axle

2x16T,Yongli Tai Brand(Fuwa opptional)

Suspension

Single Point Suspension 32T

Tyre

12.00R20,8pieces,Triangle Brand

Steering Wheel

A set of 20T steering wheel ,Yongli Tai Brand

Draw Bar

9000mm seamless steel tube, divided into two parts,one 5000mm,

one 4000mm.Thickness is 10mm,Diameter is 210mm.

Brake System

With

The specifications are for reference only, accurate data will be provided according the final design.
